Jotun Painting Rail Car Unloading System For Handling Transporting Bulk Materials

Brand Name : SSI

Model Number : customized

Certification : manufacture certificate

Place of Origin : china

MOQ : 1

Price : US $1,500,000-5,000,000/ Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 sets / year

Delivery Time : 6 months

Packaging Details : Wooden case or bare

product : Rail car unloading System

color : blue

painting : Jotun

model : customized

character : electric powered

advantage : high efficient

motor : Seimens

price : cost effective

Contact Now

Rail car unloading system for handling and transporting bulk materials

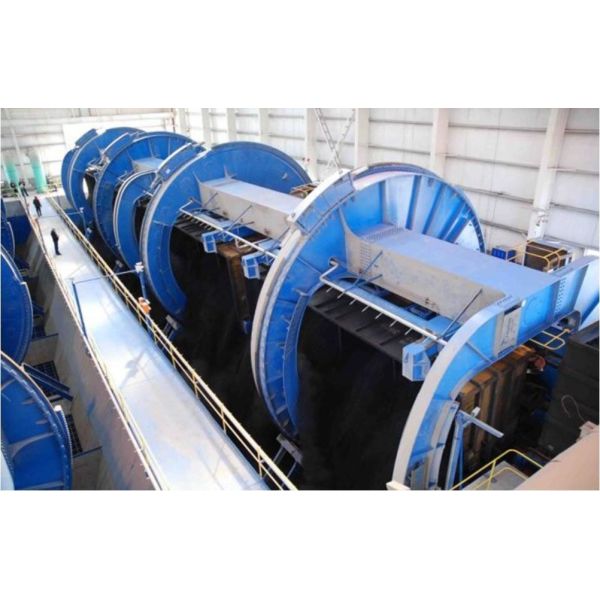

The Train Tipping Machine System is a mechanism used for unloading rail cars. It holds the rail car to a section of track and then rotates the track and car together to dump out the bulk materials. The train tipping machine system is designed as the dumper barrel rotates on the centreline axis of the railcar couplers, car clamps securely hold the railcar in place during rotation. Rotary car dumper is mainly applied for bulk ports and terminals or coal-fired power plants. The material is unloaded into the hopper and is transported via a conveyor located under the hopper. It makes handling a wide variety of materials a rapid, automated process. Two barrel dumper configurations dump 2 railcars simultaneously to increase traditional unloading capacity.

Technical specification

Selection parameters of train bumper number
Number of vehicles overturning at the same time type tipping	Type		Tipping capacity applicable	moel	Model size(mm)			Tipping weight (T)		Rotation angle (°)		Slewing speed starting	Starting and braking time rotation	Rotation time
			(knots / hour)		long	wide	high	rated	max	normal	max	r/min	s	s
1	C	Turn back	20-24	C50～C60	11938～14038	3140～3243	2790～3594	100	110	160	175	1	8	65-75
2	O	penetration	58-74	C60	It can be adjusted according to the actual model			2x84	2x110	160	170	2.8	8	35-45
2	C	Turn back	32-36	C60				220	240	165	175	1.2	8	50-70
3	O	penetration	90	C80～C100				300	372	165	180	1.885	6	40-60
3	C	Turn back	42	C61～C96				300	372	175	175	1.09	8	50-75
4	O	penetration	112	C80				400	ellipsis	165	ellipsis	1.885	3	35-45

Jotun Painting Rail Car Unloading System For Handling Transporting Bulk Materials

Photos of our factory

Jotun Painting Rail Car Unloading System For Handling Transporting Bulk Materials
